KGPS-2
Register to see price
Part Number: OPN2453X066
When ordering, please, specify: Exact Tx Rx frequencies. Connector type ( BNC, PL.TNC,N,FME,SMA). Connector GPS ( SMA, FME,SMB....). With or W/O Spring (S4).

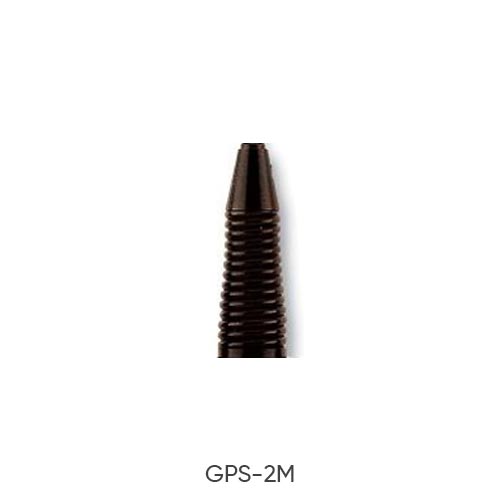

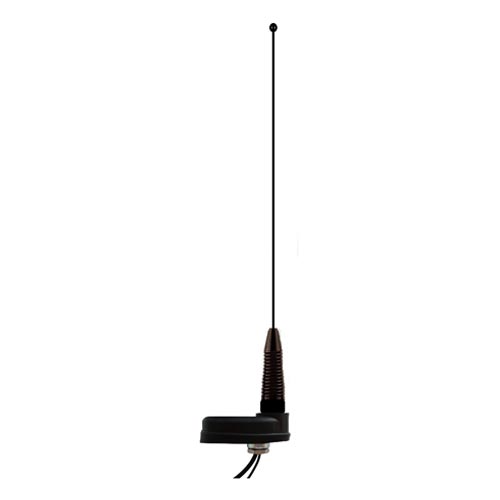

The KGPS-2 is a Dual Mode Mobile Antenna for the 136-174 MHz Band and GPS 1575 MHz. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart. The antenna has vertical polarization in 1/4 wave configuration.
The antenna is supplied with 5.0 meter cable of the RG58/U type for RF and 5 meter RG 174 cable for GPS, which can terminate in any type of connector.
| ELECTRICAL SPECS | |
|---|---|
| Frequency Range | 136-174MHz,1575 Mhz GPS |
| Input Power | 100 W |
| SWR | < 1.5 : 1 |
| Impedance | 50 Ω |
| Polarization | Vertical |

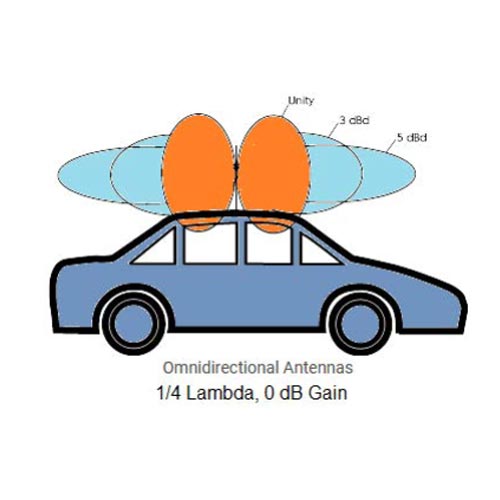

| Gain | 0 dB, 27 dB gain GPS |
| MECHANICAL SPECS | |
|---|---|
| Length | 70 cm max. |
| Weight | 0.4 Kg |
