KGPS-4 1G
Register to see price 110.00
Part Number: OPN2453X070
When ordering, please, specify: Exact Tx Rx frequencies. Connector type ( BNC, PL.TNC,N,FME,SMA). Connector GPS ( SMA, FME,SMB....). With or W/O Spring (S4).
The KGPS-4 1G is a Dual Mode Mobile Antenna for the 66-88 MHz Band and GPS 1575 MHz. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart.

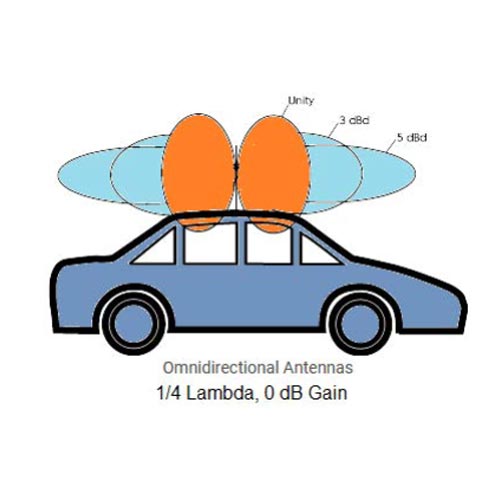

The antenna has vertical polarization in 1/4 wave configuration. The antenna is supplied with 5.0 meter cable of the RG58/U type for RF and 5 meter RG 174 cable for GPS, which can terminate in any type of connector.
| ELECTRICAL SPECS | |
|---|---|
| Frequency Range | 66-88 MHz, 1575 Mhz GPS |
| Input Power | 100 W |
| SWR | < 1.5 : 1 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Gain | 0 dB, 27 dB gain GPS |
| MECHANICAL SPECS | |
|---|---|
| Length | 155 cm max. |
| Weight | 0.4 Kg |
