KGPS-70G 45 804
Register to see price
Part Number: OPN2453X077
Tags: Mobile Antenna
When ordering, please, specify: Exact Tx Rx frequencies. Connector type ( BNC, PL.TNC,N,FME,SMA). Connector GPS ( SMA, FME,SMB....). With or W/O Spring (S4).

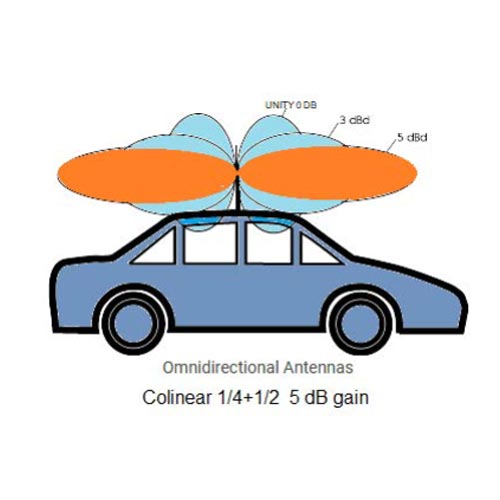

The KGPS-70G 45 804 is a Dual mode GPS Magnetic mobile antenna for the 370 – 470 MHz Band, 1575 Mhz in GPS. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart. The antenna has vertical polarization with 1/2 over 1/4 wave colinear configuration for long range performance.
The inbedded GPS antenna is active and offers 27 dB gain. The antenna is supplied with 5.0 meter-long cable of the RG58/U type for RF and rg 174 for GPS, both cables can terminate in any type of connector.
| ELECTRICAL SPECS | |
|---|---|
| Frequency Range | 370-470 MHz |
| Input Power | 100 W |
| SWR | < 1.5:1 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Gain | 4.5 dB with ground plane |
| GPS Gain | 27 dB active |
| MECHANICAL SPECS | |
|---|---|
| Length | 100 cm max. |
| Weight | 0.4 Kg |
