KIN 41G
The KIN 41G is a 1/4 wave, 0dB mobile Antenna for the 66-88 MHz Band. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart. The antenna has vertical polarization and uses a 1/4 wave whip with TIN base.
Register to see price
Part Number: OPN2453X091
When ordering, please, specify: Exact Tx Rx frequencies. Connector type ( BNC, PL.TNC,N,FME,SMA). Connector GPS ( SMA, FME,SMB....). With or W/O Spring (S4).
Description
Technical Specs
Patterns & Curves
The KIN 41G is a 1/4 wave, 0dB mobile Antenna for the 66-88 MHz Band. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart. The antenna has vertical polarization and uses a 1/4 wave whip with TIN base.
The antenna is supplied with 5.0 meter-long cable of the RG58/U type, which can terminate in any type of connector
| ELECTRICAL SPECS | |
|---|---|
| Frequency Range | 66-88 MHz |
| Input Power | 100 W |
| SWR | < 1.5:1 |
| Impedance | 50 Ω |

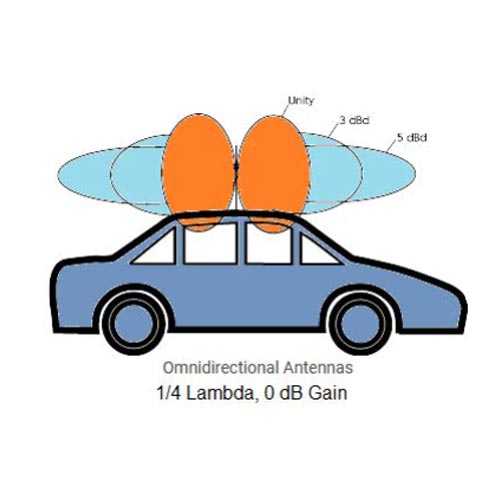

| Polarization | Vertical |
| Gain | 0 dB |
| MECHANICAL SPECS | |
|---|---|
| Length | 155 cm max. |
| Weight | 0.4 Kg |
