KNMO-2 1/2
Register to see price
Part Number: OPN2453X100
Tags: Mobile Antenna
When ordering, please, specify: Exact Tx Rx frequencies. Connector type ( BNC, PL.TNC,N,FME,SMA). Connector GPS ( SMA, FME,SMB....). With or W/O Spring (S4).
The KNMO-2 1/2 is a Mobile Antenna for the 136-174 MHz Band. High-performance radiator (conical 17-7 PH Black Chrome whip), which can be easily tuned by use of cutting chart. The antenna has vertical polarization and uses a loading coil with NMO base to obtain a 1/2 wave configuration,allowing the antenna to perform without ground plane on motorcycles and fiberglass rooftops.
The antenna is supplied with 5.0 meter-long cable of the RG58/U type, which can terminate in any type of connector
| ELECTRICAL SPECS | |
|---|---|
| Frequency Range | 136-174 MHz |
| Input Power | 100 W |
| SWR | < 1.5:1 |
| Impedance | 50 Ω |

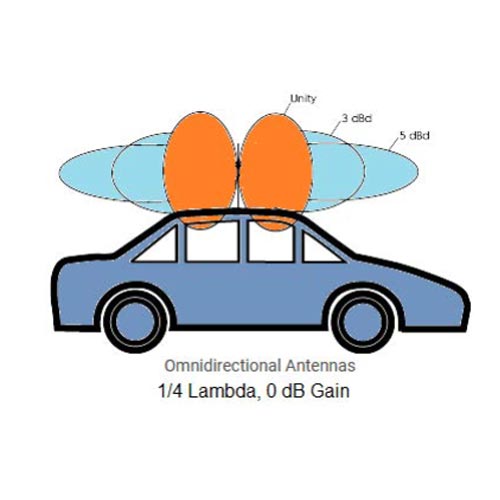

| Polarization | Vertical |
| Gain | 0 dB without ground plane |
| MECHANICAL SPECS | |
|---|---|
| Length | 100 cm max. |
| Weight | 0.4 Kg |
